Inline Deflagration Arrestor Series/Model A

Product Cut Sheet: Series A Inline (Deflagration) Flame Arrestor

• UL-525 & FM Tested
• Inline Flame Arrester is recommended to be mounted within 10' to 20' of ignition source with only (1) elbow or at the end of a line.​
• Designed with 150# ANSI flanged connections.

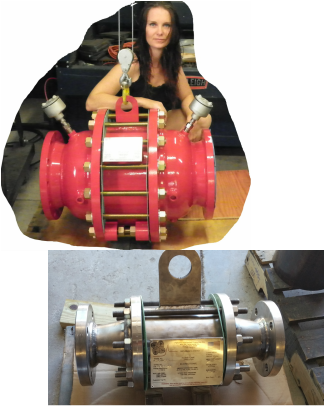

• All of our detonation and deflagration flame arrestors come with strong lifting points designed to lift the entire unit and then some.
• The flame arrestor design provides the option of the removal of the flame cell (element) for easy cleaning and replacement without disconnection of the pipe connection flanges.
• Standard housing construction is carbon steel or stainless steel.
• The element is available in 304SS, 316SS & Hastelloy.
• Detonation and deflagration flame arresters can be made with special materials and protective coatings on request, with the exception of Aluminum.
• 15 Minute Burn Rating on Group “D” (Thermocouples Recommended, should never exceed 5 minutes for safety margin).

The Paradox Inline Flame Arrestor, prevents flame propagation by acting as a heat sink, cooling the flame front to cause it to be extinguished. This heat sink is made from spiral wound crimped ribbon that allows gas to flow with a minimum pressure drop.

Inline Flame Arresters are recommended for use on pipe lengths of between 10' & 20' with one (1) bend pipe bend only.  In addition, it stops confined and unconfined, low pressure deflagrations. All Paradox units are bi-directional and are proven to stop an ignited flammable vapor mixture of it designed gas group, approaching form either direction traveling at subsonic velocities.
